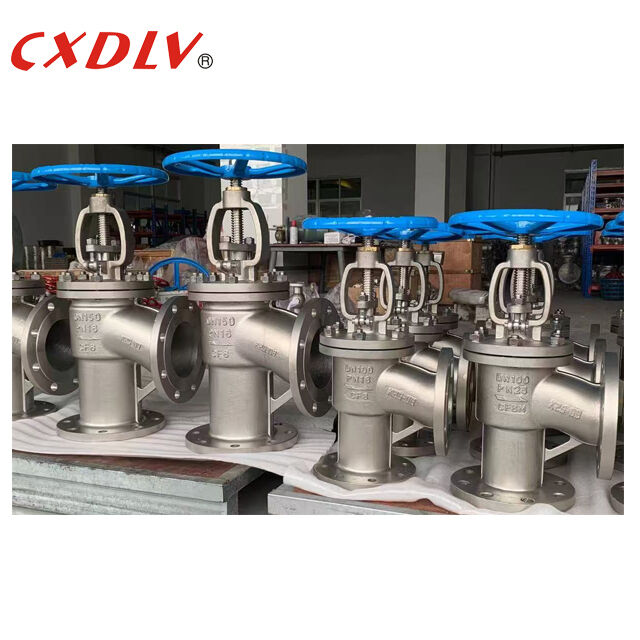

DN50-DN200 Flanged Angle Globe Valve Manual Handle Wheel Operation Shipboard Seawater Service
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | CXDLV |
| Certificação: | ISO9001:2008 CE |
| Número do modelo: | J44W-16P |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | 1 polybag para 1 conjunto de válvula |
| Tempo de entrega: | 7-30 dias |
| Termos de pagamento: | L/C, T/T, Western Union |
| Habilidade da fonte: | 2000 pontos/mês |
|
Informação detalhada |
|||
| Material da bola: | CF8,CF8M,WCB,C95800 | Tamanho: | DN25-DN200 |
|---|---|---|---|
| Padrão: | GB | Conexão final Padrão: | Hg/T20592 |
| Cara a cara Padrão GB/T12221: | GB/T12221 | Padrão de projeto: | GB/T12233 |
| Destacar: | Flanged angle globe valve manual operation,Stainless steel globe valve shipboard service,DN50-DN200 globe valve seawater service |
||
Descrição de produto
DN50-DN200 Flanged Angle Globe Valve Manual Handle Wheel Operation Shipboard Seawater Service
Specifications
- Design Standard:GB/T12221
- Inspection & Test: GB/T13927
- Face To Face: GB/T12221
- Flange Connection: HG/T20592
Application
An angle globe valve is a type of linear motion valve with an L-shaped body, where the inlet and outlet ports are oriented at a 90 degree angle to each other. Used for throttling and flow regulation, its design reduces the need for extra elbows in piping, effectively lowering flow resistance and saving space.
| SIZE | L | D | D2 | b | H | Z-Φd |
| DN50 | 125 | 165 | 102 | 2 | 265 | 4-18 |
| DN80 | 155 | 200 | 138 | 2 | 325 | 8-18 |
Feature
The inlet and outlet channels of the angle globe valve are not in the same direction but at a 90° right angle, and a certain pressure drop is generated when the medium passes through. Its biggest advantage is that it can be installed at the corner of the management system, which saves 90° elbows and is easy to operate. The opening and closing part of the Angle globe valve is a plug shaped valve disc, the sealing surface is plane or cone, and the valve disc moves in a straight line along the center line of the fluid. The movement of the valve stem has a lifting rod type and a lifting rotating rod type.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
