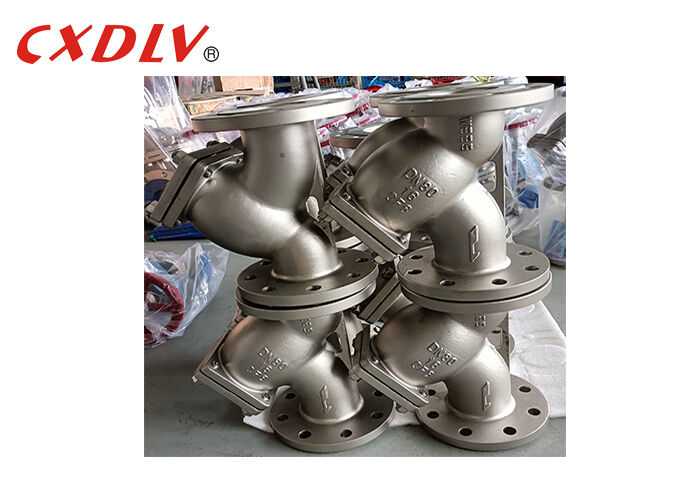

Flanged Connection CF8 Body Material Y Strainer Valve With Mesh 40 PN16 RF
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | CXDLV |
| Certificação: | ISO9001:2008 CE |
| Número do modelo: | GL41H |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Negociável |
| Tempo de entrega: | 7-30 dias |
| Termos de pagamento: | L/C, T/T, Western Union |
|
Informação detalhada |
|||
| Material do corpo: | CF8/CF8M/CF3/CF3M/WCB | Tamanho: | DN150~DN200 |
|---|---|---|---|
| Conexão: | Final da flange | Poder: | Manual |
| Junta: | PFTE | Temperatura de trabalho: | ≤200℃ |
| Malha: | 40/80/120 | ||
Descrição de produto
Flanged Connection CF8 Body Material Y Strainer Valve With Mesh 40 PN16 RF
Specifications
Nominal pressure: PN1.6-6.4,JIS10K,ANSI150LB
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180℃
Applicable media:Water.Oil.Gas
Application
Y-type strainer valve is suitable for domestic and industrial liquids in the production of petroleum, chemical, chemical fiber, light industry, water treatment, municipal engineering, etc., to filter solid impurities. It is usually installed in front of the pump, compressor inlet or flow meter, pipeline valve, and piping equipment to protect equipment and piping from blockage and wear.
Y-type strainer are usually installed at the inlet end of pressure reducing valves, pressure relief valves, fixed water level valves or other equipment to remove impurities from the media to protect the normal use of valves and equipment. It can also be used for filtration of large particles in gas or other media. It can be installed on the pipeline to remove large solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.) and instruments can work and operate normally, and the process is stabilized. The role of safe production. The Y-type filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil network is 100~480 mesh.
| SIZE | d | D | D1 | D2 | t | C | n-φb | L |
| DN15 | 15 | 95 | 65 | 45 | 2 | 14 | 4-14 | 120 |
| DN20 | 20 | 105 | 75 | 58 | 2 | 14 | 4-14 | 140 |
| DN25 | 25 | 115 | 85 | 68 | 2 | 14 | 4-14 | 155 |
| DN32 | 32 | 135 | 100 | 78 | 2 | 16 | 4-18 | 180 |
| DN40 | 40 | 145 | 110 | 88 | 3 | 16 | 4-18 | 200 |
| DN50 | 50 | 160 | 125 | 102 | 3 | 16 | 4-18 | 220 |
Feature
2. The Y-type filter adopts the patented internal mechanical structure to realize the high-pressure backwash function in the true sense. The external high-pressure backwashing of the filter screen combined with the internal self-priming and sewage discharge can easily and thoroughly remove the impurities trapped by the filter. There is no dead angle in the cleaning, and the flux is not attenuated, which ensures the filtration efficiency and long service life.
3. The Y-type filter cleaning differential pressure signal is transmitted by differential pressure transmitter, which overcomes the disadvantage of large differential pressure switch error.
4. The transmission device is built-in, sealed and isolated from the overcurrent components, and designed with trip protection to prevent the motor or the body.
5, Y-type filter sewage outlet relies on hydraulic sealing, no need for solenoid valves or other vulnerable seals, simple and practical.
6. The inlet and outlet flanges are designed as movable structures, which can be rotated and adjusted to facilitate the on-site installation.
7. The internal anti-corrosion of Y-type filter adopts special non-toxic anti-corrosion material, which has good weather resistance, acid and alkali resistance, salt spray resistance,
8. Y-type filter electrical system adopts integrated control mode, which can realize remote control.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
